Steel Spiral Staircase Salisbury
All our commercial and large domestic steel spiral staircase are custom made. As each application is a little different the going, rise and platform sizes need to be formed to suit the project. For this reason full working drawings are prepared for each spiral staircase.
Non Slip Perforated Steel
Tear Drop / Chequer plate Steel
Steel plate to take infill
Mesh / Grating
The balustrade itself is in-filled by either :-
Vertical Steel Spindles
Horizontal steel rails
Curved mesh panels
The handrail is generally 42.4mm diameter and the platforms are generally square in shape, situated level with the finished floor. Form domestic applications a small riser bar or steel back plate can be added to comply with the 100mm gap rule.
The vast majority of these spirals staircases are supplied for external use and are therefore galvanised for protection. Internal models can be supplied primed for on-site painting or full powder coated. For those wishing to have a coloured external flight, a special powder coating finish can be added to the already galvanised surface.
For a price for your own Spiral Staircase Salisbury – please fill out the form below.
|Floor to floor height||3820mm|
|Risers||17 in total|
|Clear Tread Width||900mm|

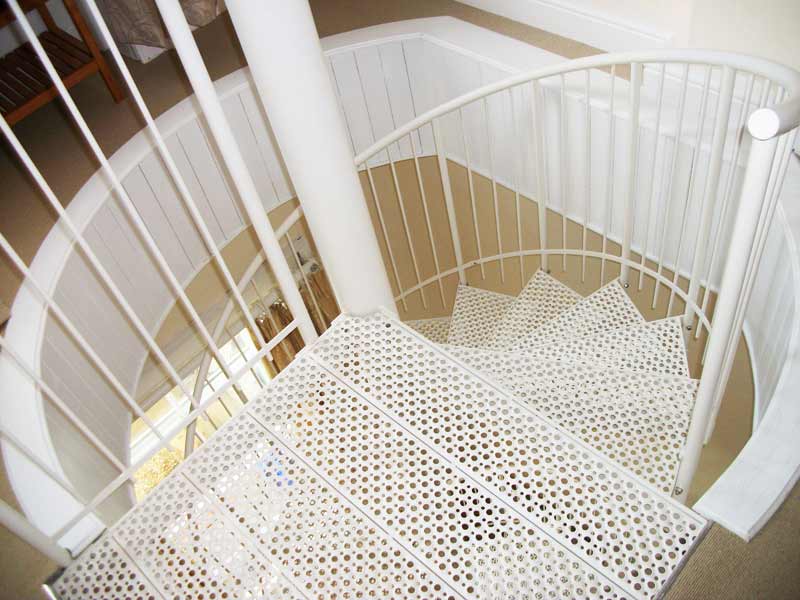

|Tread Type||Non Slip Perforated Steel|
|Balustrade Type||10mm Ø vertical steel spindles|
|Handrail||37mm diameter steel|
|Finish of steel
||enlarged back plate to reduce gap|
|Additional||matching landing balustrade|
