Oak Spiral Staircase Nottingham

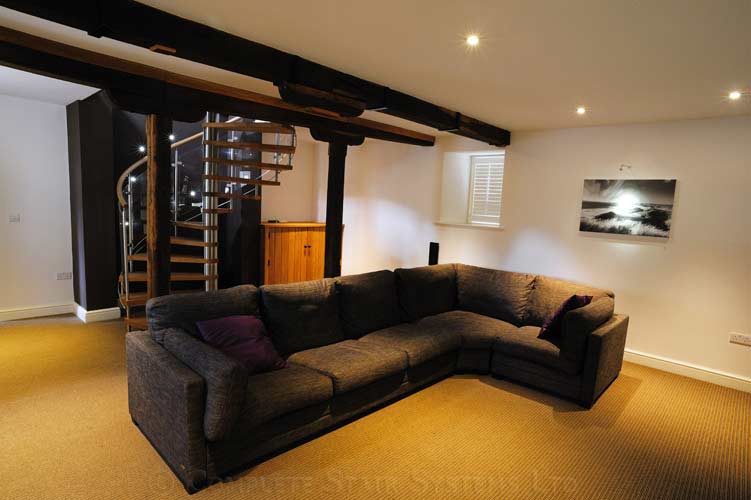

‘Spiral Staircase Nottingham’ was a project involving the refurbishment of a listed building. The interior was to be a mix of old and new and a feature spiral staircase was required as the focal point in the living room.

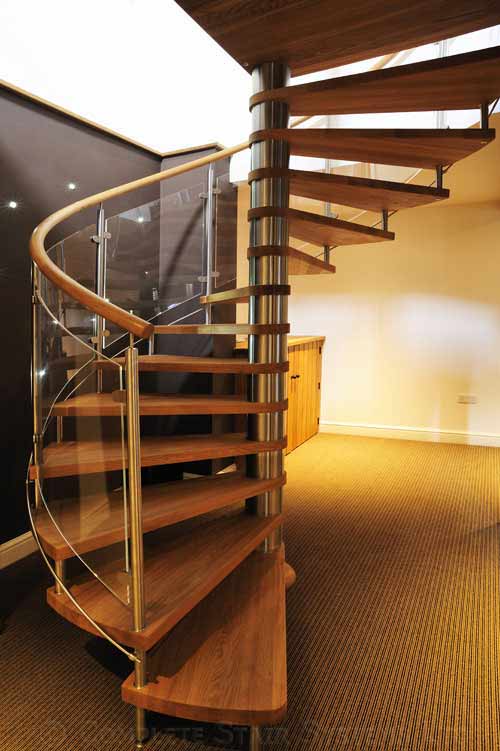

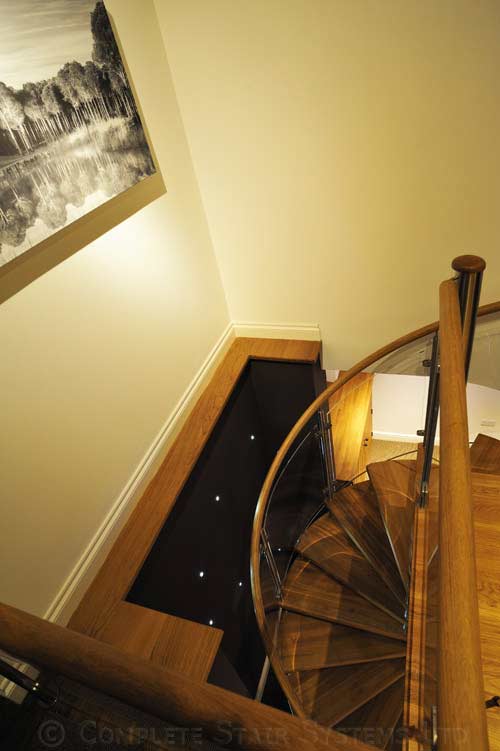

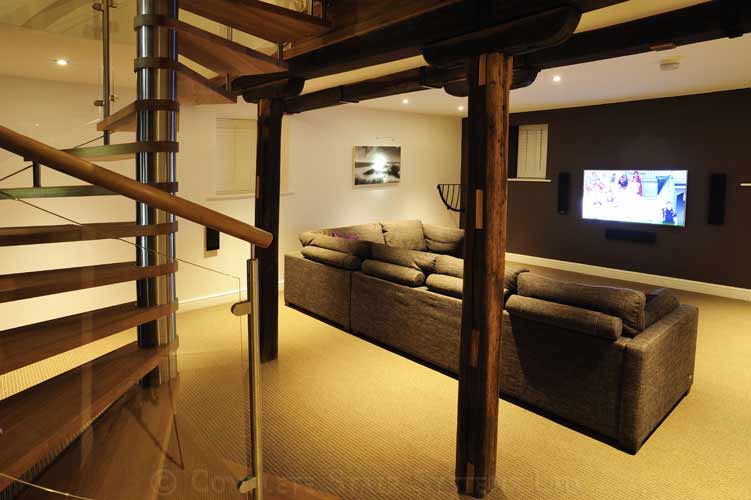

This spiral staircase model had solid oak treads and handrail with curved acrylic panels wrapping around the perimeter allowing the passage of light.
Barn Conversion Spiral Staircase

The model 71 stunning spiral staircase is a bespoke spiral. It is constructed with circular barrels which slid over the centre column and separate the solid wooden treads The centre column which is hidden on completion has a steel column running up the middle giving the entire spiral staircase stability.

The wood available for this stunning spiral staircase in always hardwood for strength :- Beech, Oak, Ash, Maple, Birch & Walnut

The balustrade wrapping around the perimeter of the spiral is formed with :- Vertical Steel Spindles, Horizontal steel rails, Curved acrylic panels, Curved Glass Panels, Curved Perforated Steel Panels

The handrail and newel posts on the Model 71 spiral staircase are formed in timber or steel to match rest of the materials. The steel tends to be either brushed or polished stainless steel or powder coated. The wood is either oiled, varnished or stained in the factory and sometime left untreated to be stained on site.

Each Model 71 spiral staircase supplied is a one off. The spiral is drawn carefully to make sure the enter and exit point is correct and there are no headroom issues. As the spiral is bespoke, the platform can be made to suit the opening if needed and the overall outer diameter of the spiral can supplied upto 2200mm.

If you would like a price for this stunning spiral staircase, please fill out the form below.

Oak Spiral Staircase Nottingham

Technical Specification

Floor to floor height 2742mm
Risers 14 @ 195.8mm
Spiral Diameter 2000mm
Clear Tread Width 850mm
Tread Type 50mm Oak
Balustrade Type 8mm curved acrylic panels & stainless newels
Handrail 50mm Ø Oak
Centre Column 146mm Ø
Finish of Steel Brushed Stainless Steel

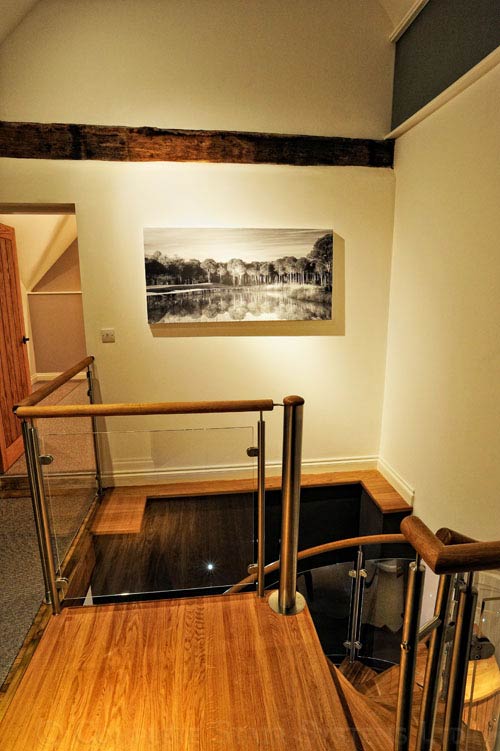

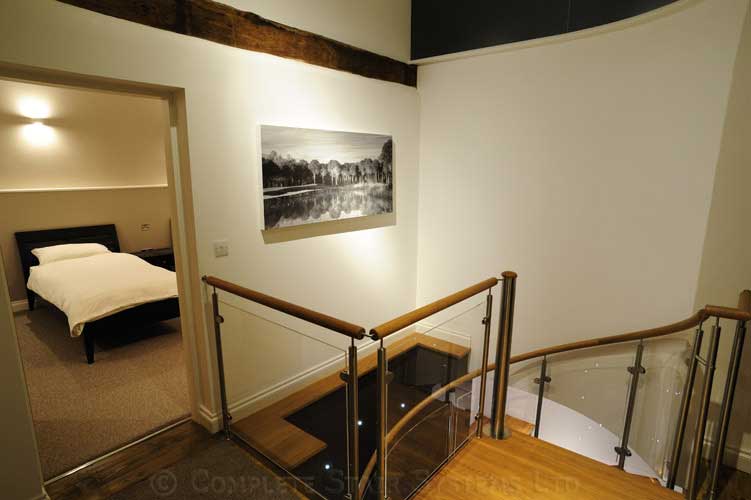

Additional 2m Landing Balustrade

Contact us about this Spiral Staircase
