Steel Spiral Staircase Blandford Forum

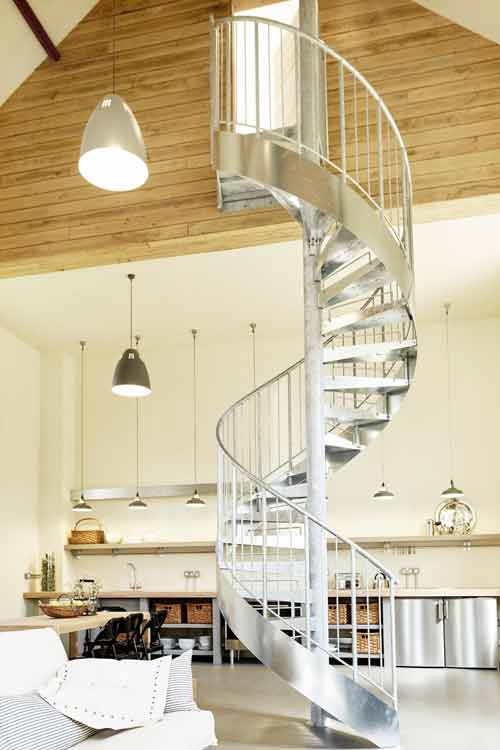

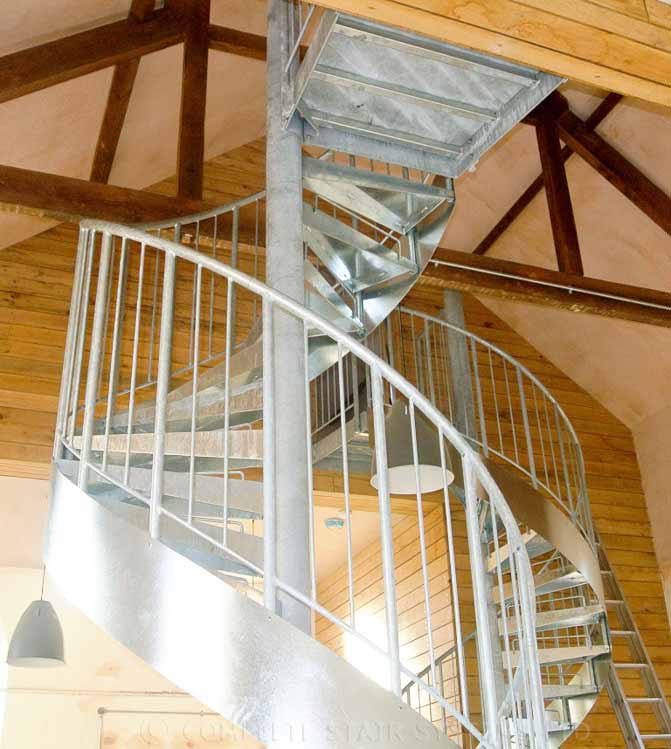

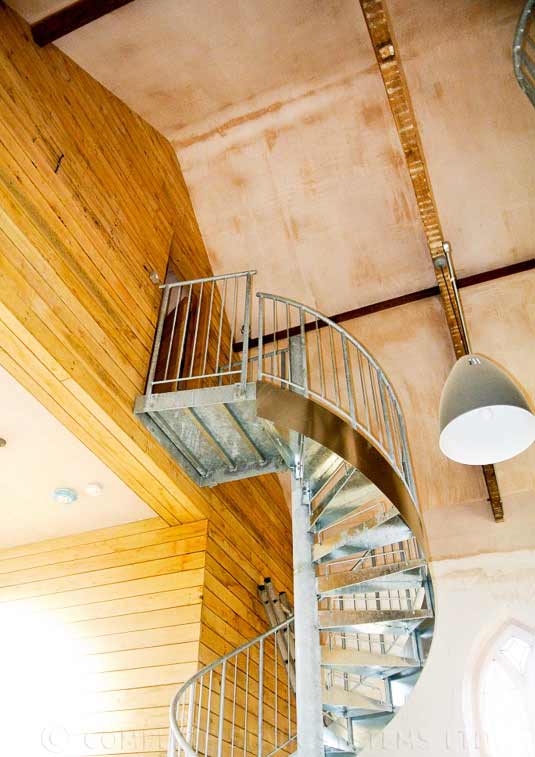

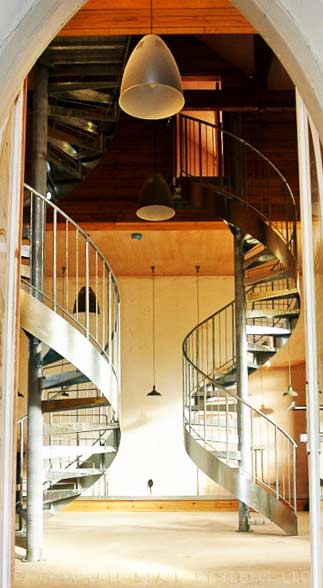

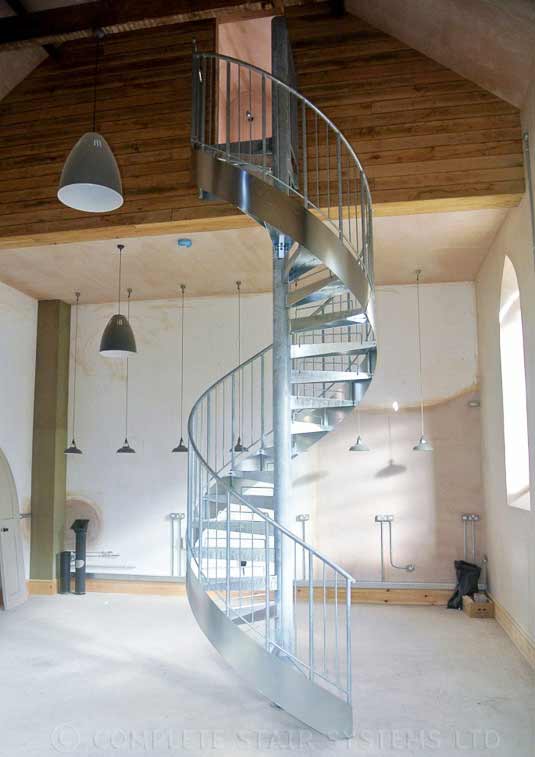

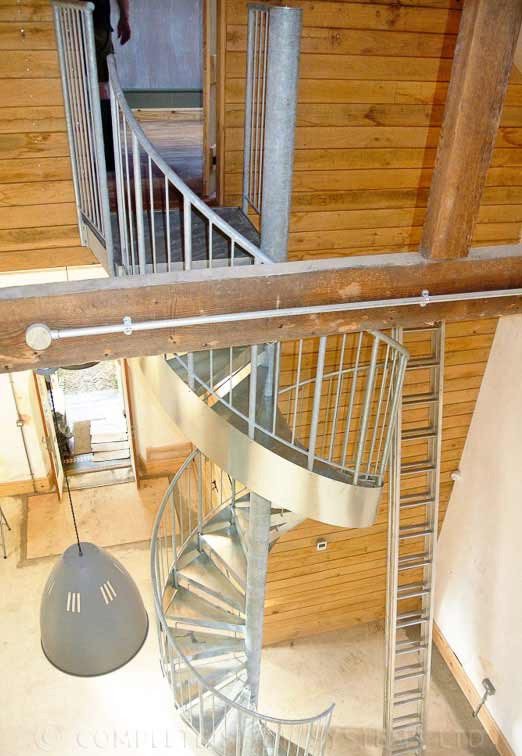

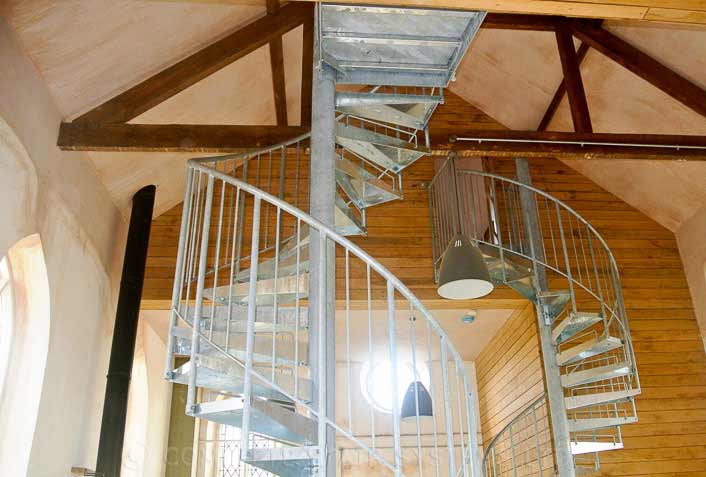

Two spiral staircases supplied for a holiday let refurbishment in Blandford Forum, Dorset.  The property was an old chapel and access was required to each of the ‘loft bedrooms’ in the eaves.  Our client was a designer by trade and selected a galvanised spiral staircase from the range with basic steel treads which they were to cover with vinyl on completion.

The result was really quite effective with a modern, industrial steel spiral staircase in a fairly old building.

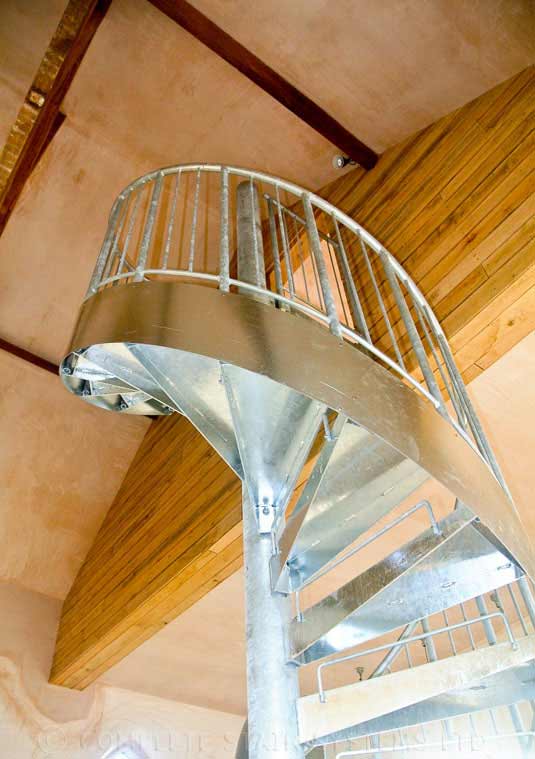

The diameter of each model was 1500mm to ensure the 600mm clear tread width to comply with regulations and each spiral spanned a huge 4.6m in floor to floor height.  The spiral stairs were our standard ‘external fire escapes’ with vertical steel spindles and a steel handrail.  Together we decided to add a 1.5mm plate stringer to the outside of the spiral, hiding the treads and adding a little design detail.  The pictures taken were without finished floors and without the vinyl on the treads.  These will be forthcoming in due course.

For a price for a similar (or the same) spiral from this project Spiral Staircase Blandford Forum, internal or external, please fill our the form below.

Spiral Staircase Blandford Forum

Technical Specification

Floor to floor height 4600mm
Risers 22 for each
Spiral Diameter 1500mm
Clear Tread Width 600mm
Tread Type Steel plate to take infill (by customer)
Balustrade Type 10mm Ø vertical steel spindles
Handrail 37mm diameter steel
Finish of steel
Fully Galvanised
Riser Infill
mini riser bar included
Additional outer mini stringer (3mm)
