Oak Spiral Staircase Inverness

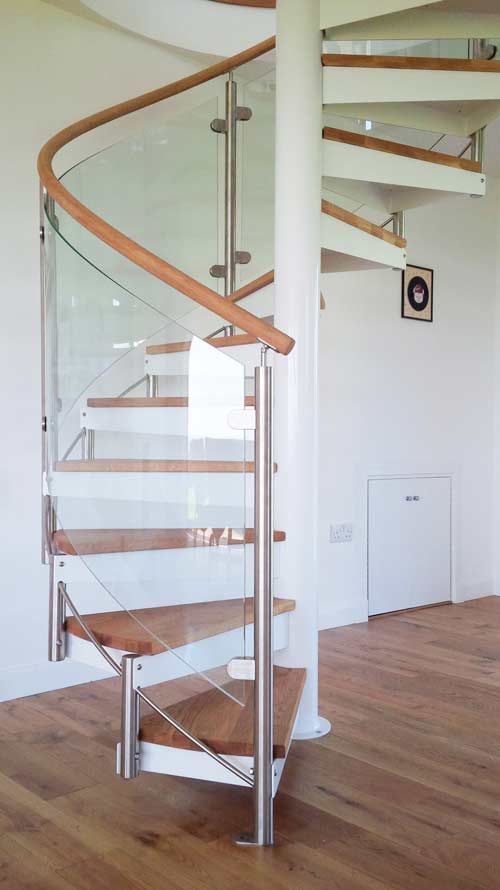

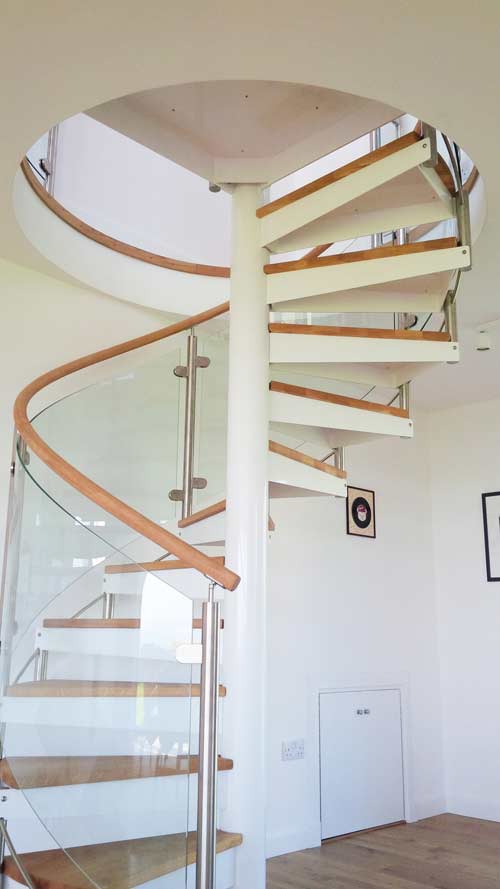

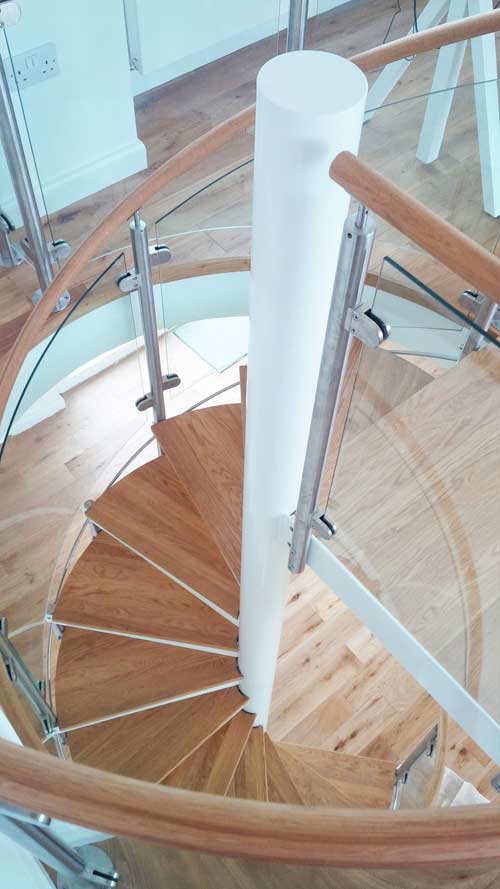

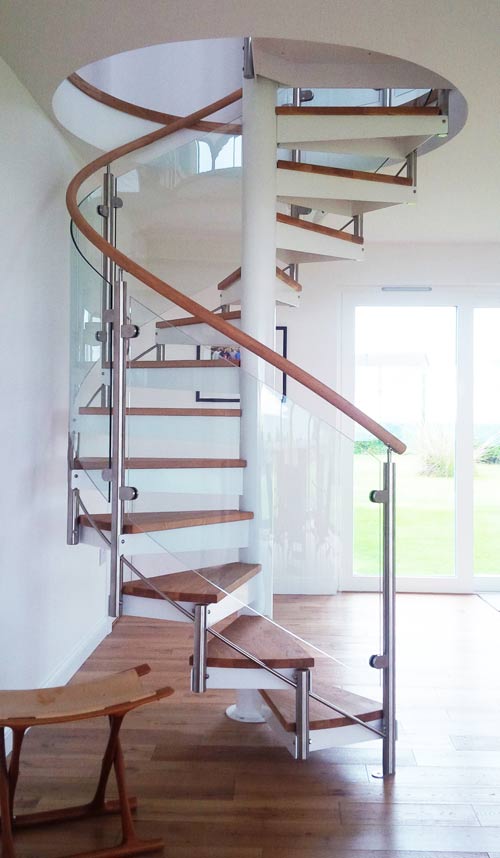

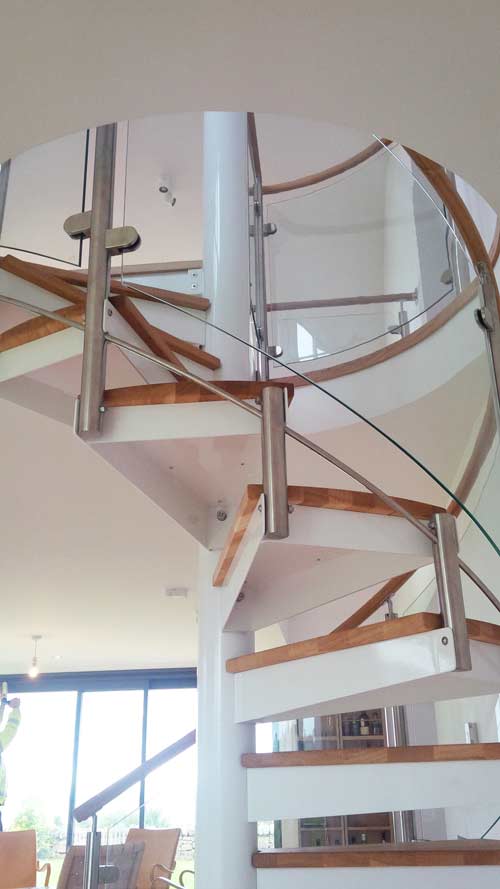

Our client was a builder creating a new dwelling for his client.  A staircase was required to access the upstairs ensuite and with space at a premium, a spiral was the obvious choice.

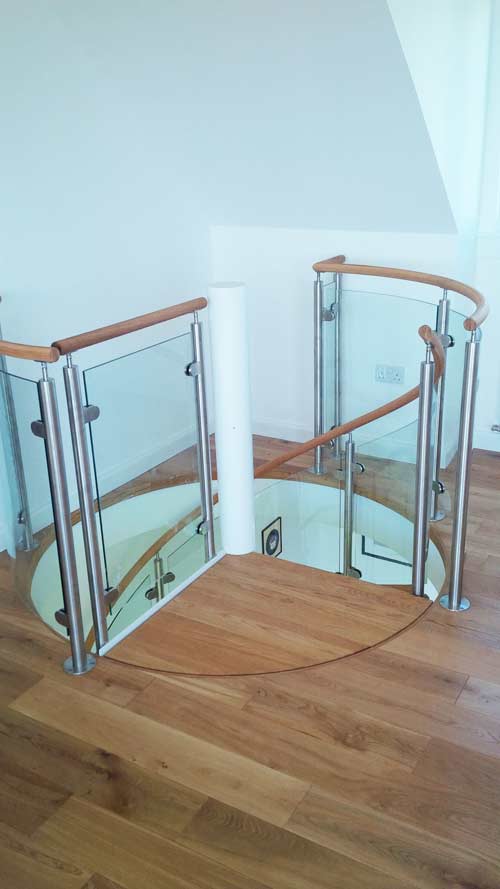

Oak treads and handrail were selected to match the oak flooring installed throughout and curved glass panels were chosen to allow the passage of light.  The exit point of the spiral upstairs was crucially important to allow sufficient headroom clearance below the angled roof.  Matching curved glass balustrade was supplied around the circular void.

If you would like a price for this Spiral Staircase Inverness project, please fill out the form below.

Oak Spiral Staircase Inverness

Technical Specification

Floor to floor height 2600mm
Risers 13 @200mm
Spiral Diameter 1500mm
Clear Tread Width 600mm
Tread Type 30mm Oak
Balustrade Type 8mm curved glass panels
Handrail 50mm Ø Oak Steel
Finish of steel
Powder Coated
Newel Posts 42.4mm Stainless Steel
Additional Curved Glass Landing balustrade
