Oak Spiral Staircase Ayrshire

Large Spiral Stair supplied for a conversion in Ayrshire, Scotland.

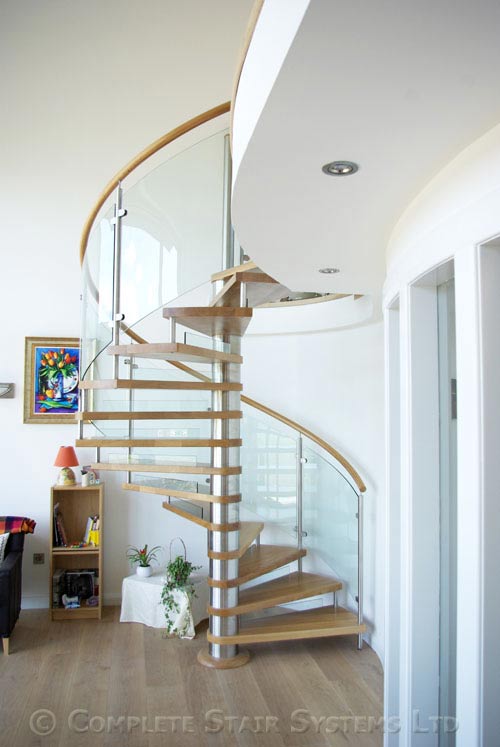

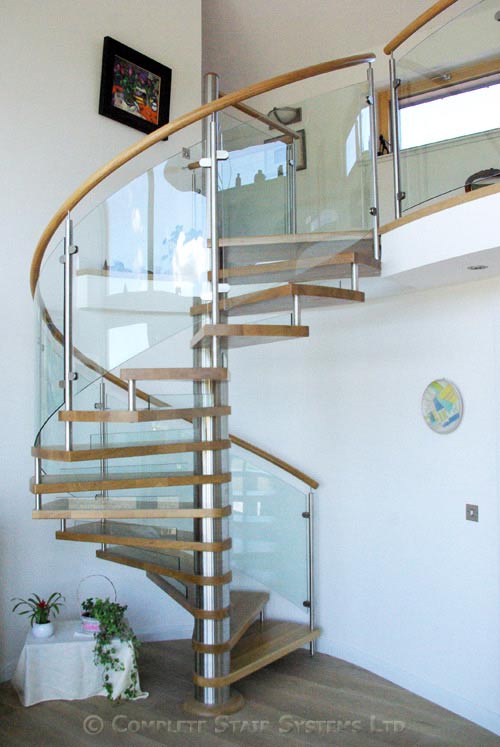

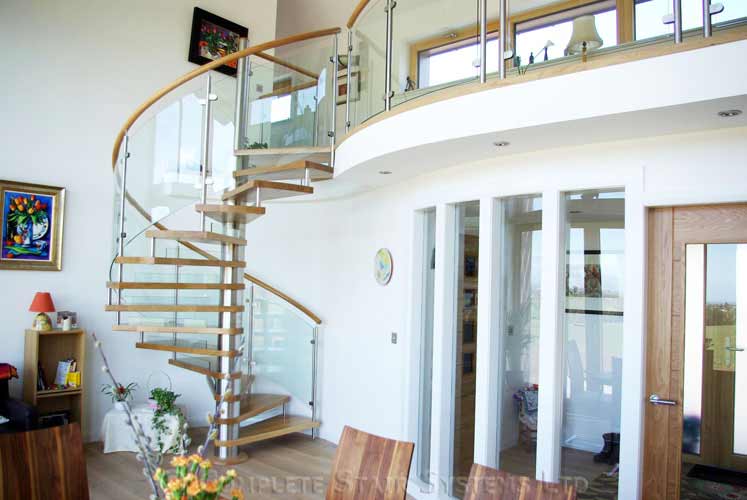

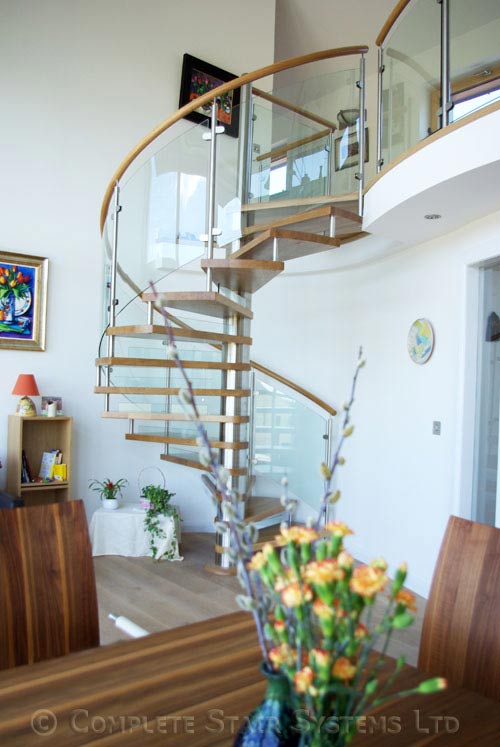

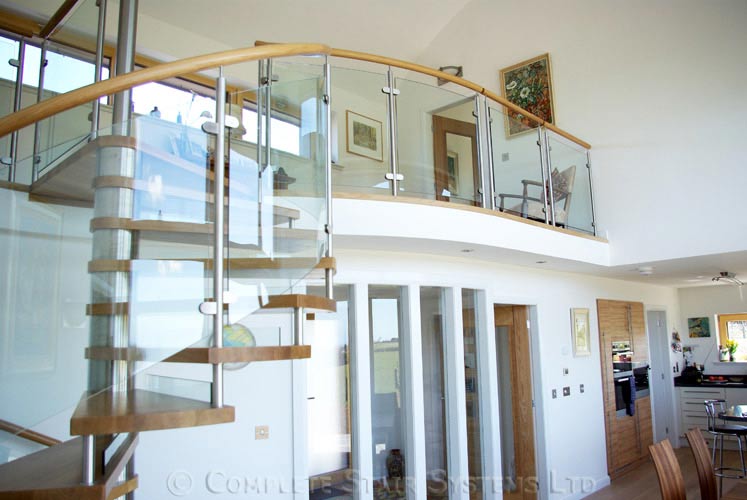

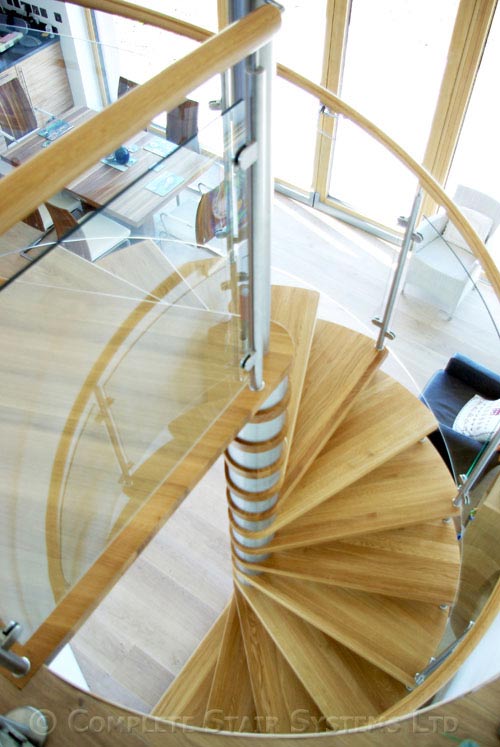

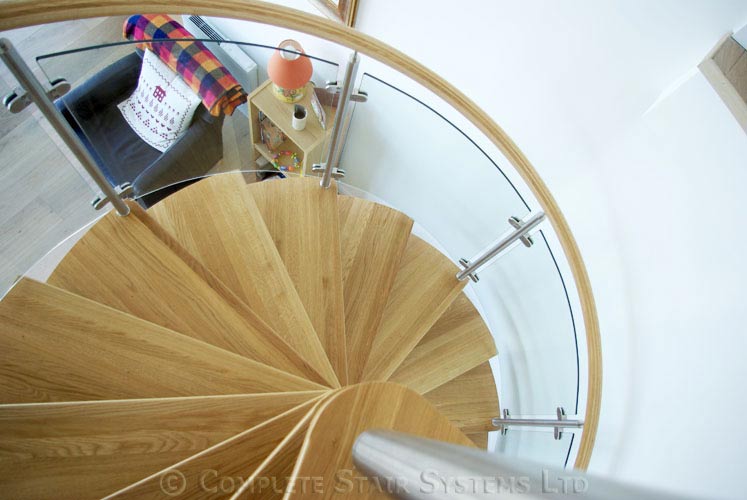

Spiral staircase 2100mm diameter supplied to a conversion in Ayrshire. This model had curved 8mm toughened glass infill panels wrapping around the perimeter and solid oak treads. A really stunning, light an open addition to the main living area.

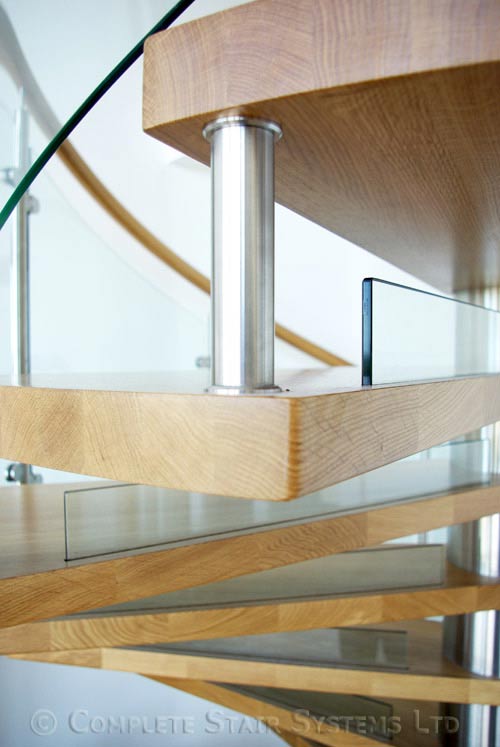

The model 71 stunning spiral staircase is a custom made model. The solid hardwood treads are slid over a centre column consisting of cylindrical barrels which hide the steel core to the column and act as spacers between the treads.

The timber is always supplied as a hardwood with a choice of :-Beech, Oak, Ash, Maple, Birch & Walnut.

The balustrade itself is in-filled by either :- Vertical Steel Spindles, Horizontal steel rails, Curved acrylic panels, Curved Glass Panels or Curved Perforated Steel Panels.

The handrail and newel posts on the Model 71 spiral staircase are made in timber or steel to match the other elements. Finish of the steel tends to be brushed stainless although we can offer polished stainless or a powder coated finish. The timber is oiled, varnished or stained in the factory and sometime left untreated to be stained on site.

Each Model 71 spiral staircase supplied in unique. Each is carefully drawn to ensure the correct entry and exit point and sufficient headroom clearance. The system can accommodate a number of differently shaped platforms and the spiral is available in diameters up to 2200mm. For a price for your own model 71 ‘spiral staircase Ayrshire’ – please fill out the form below.

Oak Spiral Staircase Ayrshire

Technical Specification

Floor to floor height 2860mm
Risers 14 @ 204.2mm
Spiral Diameter 2100mm
Clear Tread Width 100mm
Tread Type 50mm Oak
Balustrade Type 8mm Curved glass panels
Handrail 50mm Ø Oak Handrail
Centre Column Brushed Stainless Steel
Finish of Steel Brushed Stainless Steel
Additional Matching Landing Balustrade – 6m

Contact us about this Spiral Staircase
