Oak Spiral Stair Wickham
A bespoke commercial spiral staircase supplied to a client converting an old barn into offices. The spiral had to be in keeping with the industrial feel to the surroundings whilst being a feature.

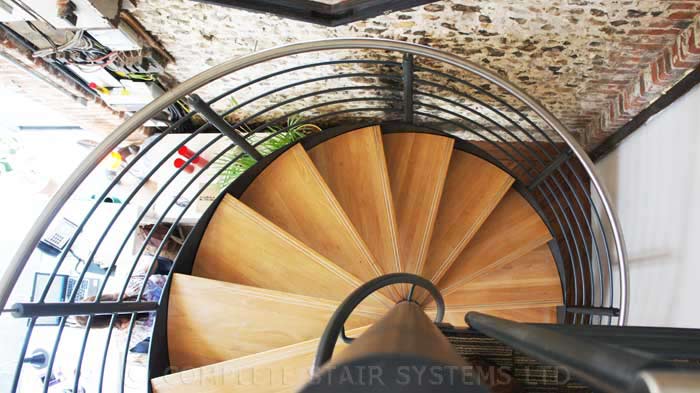

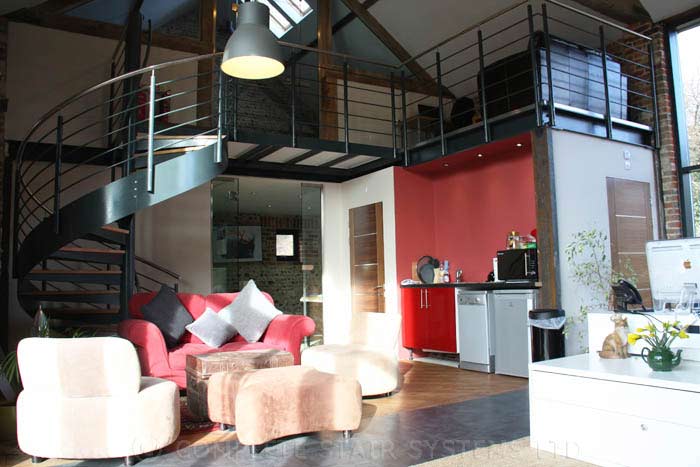

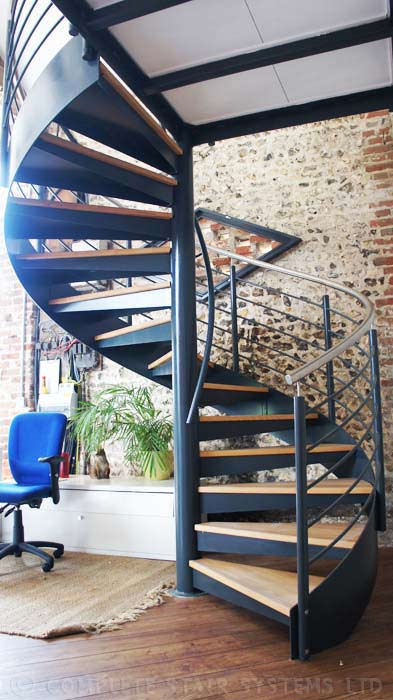

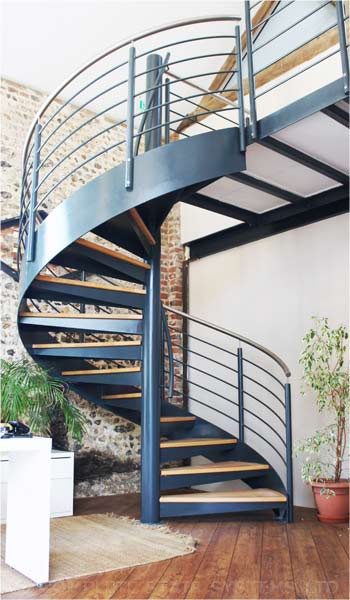

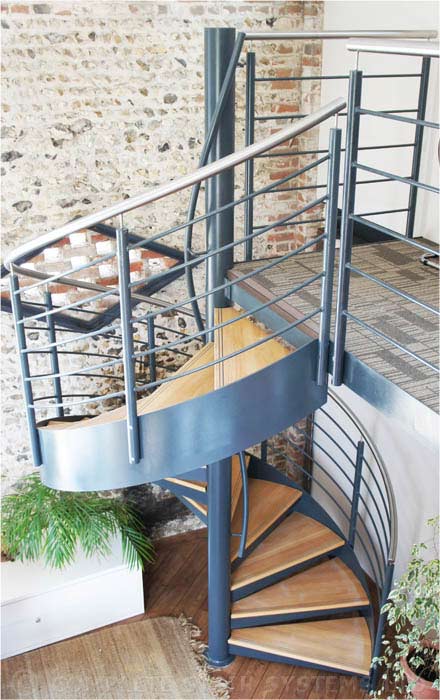

The spiral staircase was supplied with solid oak treads on a steel structure with a large steel band wrapping around the perimeter of the spiral. The platform was enlarged so that it formed a walkway upstairs and matching landing balustrade was supplied for this and the rest of the mezzanine level. The balustrade was constructed with horizontal stainless steel rails, topped with a stainless steel handrail. Being commercial, we included a handrail to the centre column and ensured the clear tread width was 800mm minimum.
The steelwork was supplied primed for on site painting. This was not only a cost saving but it removed the risk of any damage to the steelwork during assembly.
If you would like a price for your own ‘Spiral Staircase Wickham, Hampshire’ then please fill out the form below. We supply this type of stair for both domestic and commercial customers
|Floor to floor height||2665mm|
|Clear Tread Width||800mm|
|Tread Type||30mm Oak|
|Balustrade Type||4 x 10mm Ø Stainless Rails|
|Handrail||42,4mm Ø Stainless Steel|
|Column Handrail||42,4mm Ø Steel|
|External Stringer||300 x 8mm Steel plate stringer|
|Additional||Enlarged top platform and matching landing balustrade|
