Glass Spiral Staircase Essex

Our client was undertaking a modern project that required a contemporary spiral staircase.

There was a large window to one side of the spiral so ensuring the ‘passage of light’ was essential.

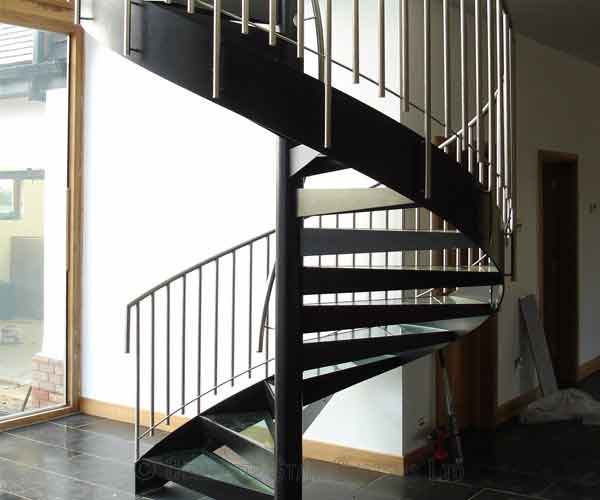

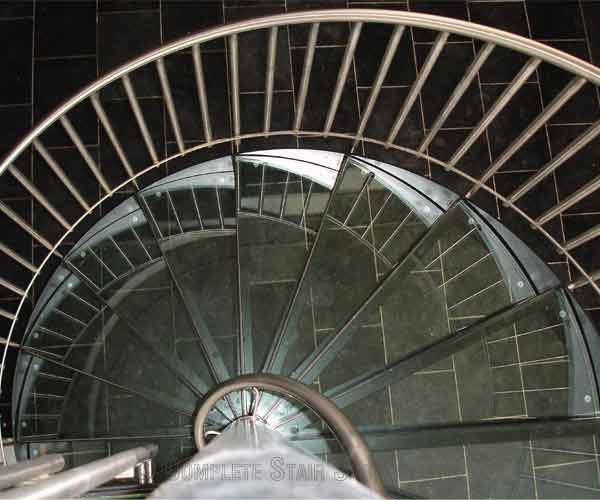

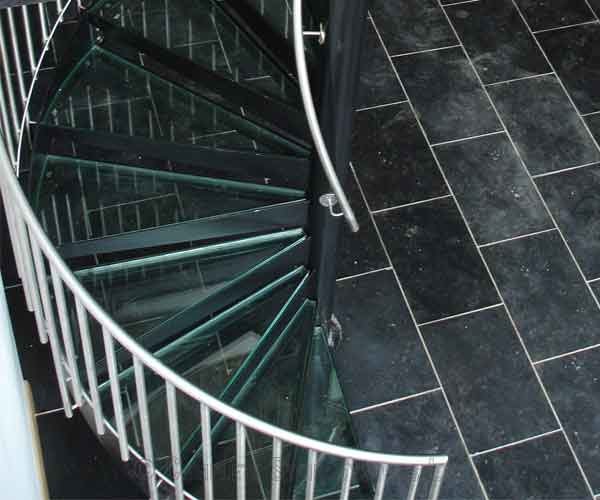

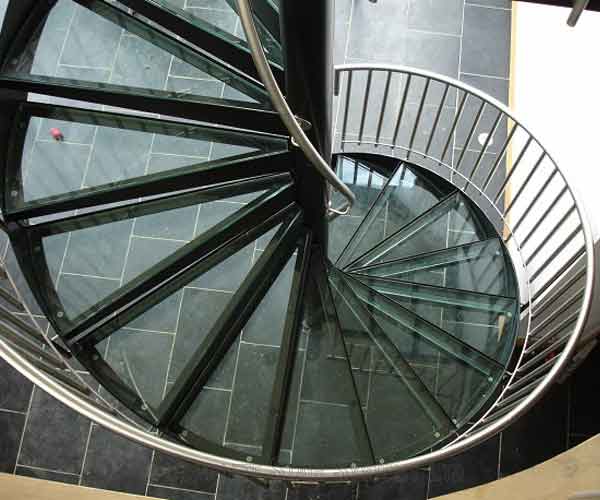

Along with the client we designed a striking sweeping spiral with an external stringer and laminated glass treads. To ensure building regulation compliance the stair had 20mm diameter stainless steel spindles and a stainless steel handrail.

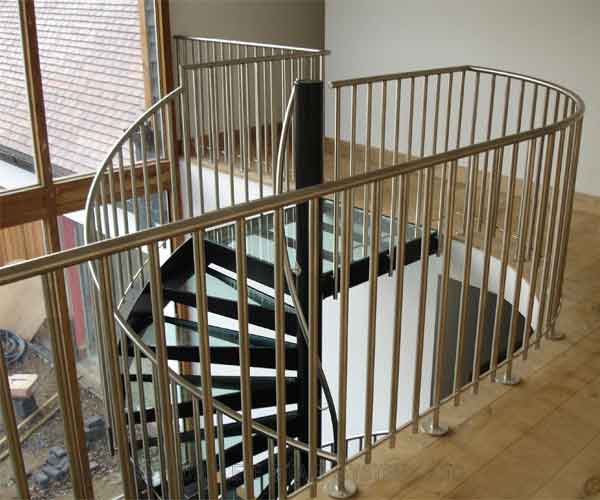

This balustrading was continued around the void at first floor level. The structural steelwork was powder coated jet black.

This is a bespoke product which is drawn precisely prior to manufacture.  If you would like a price for your very own Spiral Staircase Essex,  please fill in the form below.

Spiral Staircase Essex

Technical Specification

Floor to floor height 3200mm
Risers 17 risers
Spiral Diameter 2200mm
Clear Tread Width 900mm
Tread Type 30mm Laminated Glass Treads
Balustrade Type 20mm Ø vertical steel spindles
Handrail 42,4mm Ø Stainless Steel
Finish of steel
Powder Coated Black
External Stringer
280 x 8mm outer stringer
Additional matching landing balustrade
