Glass Spiral Staircase Cheshire

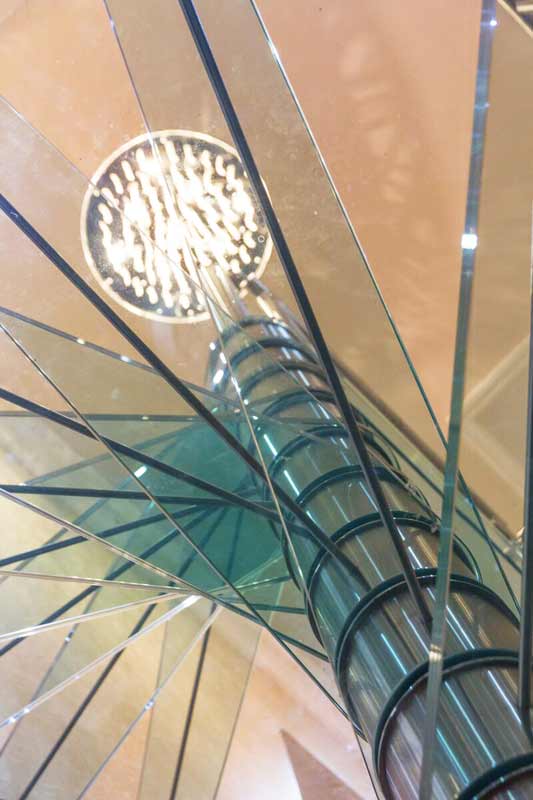

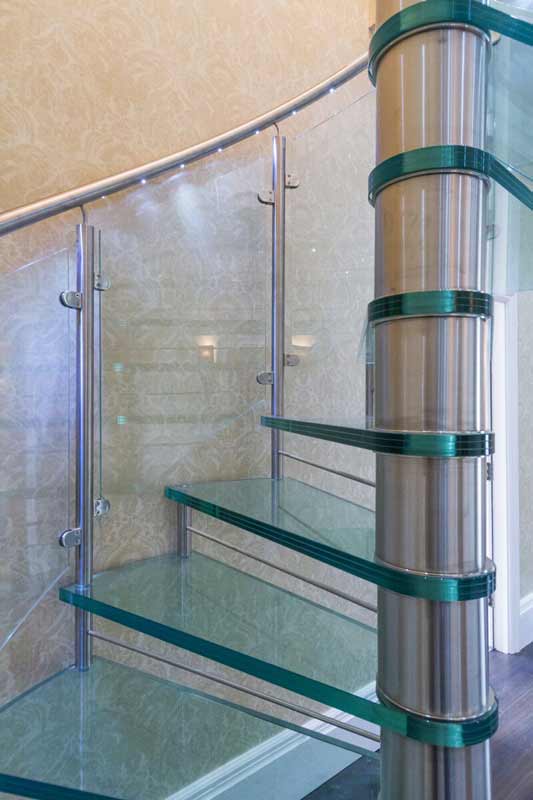

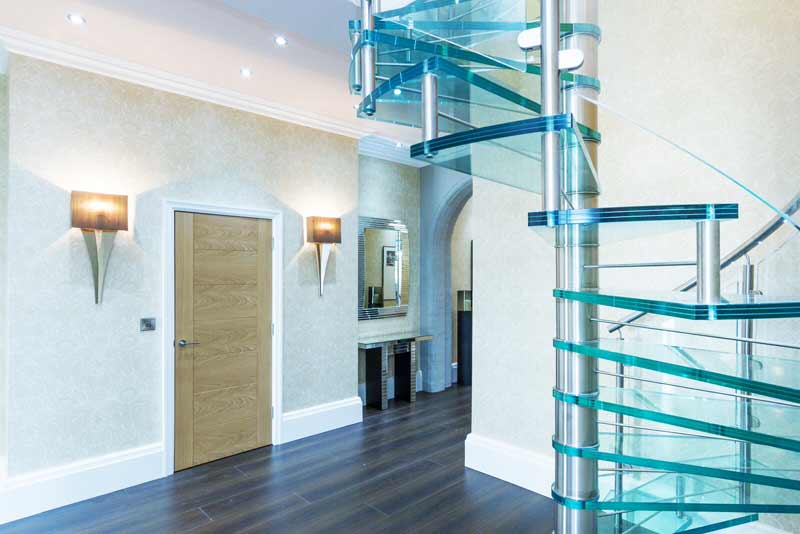

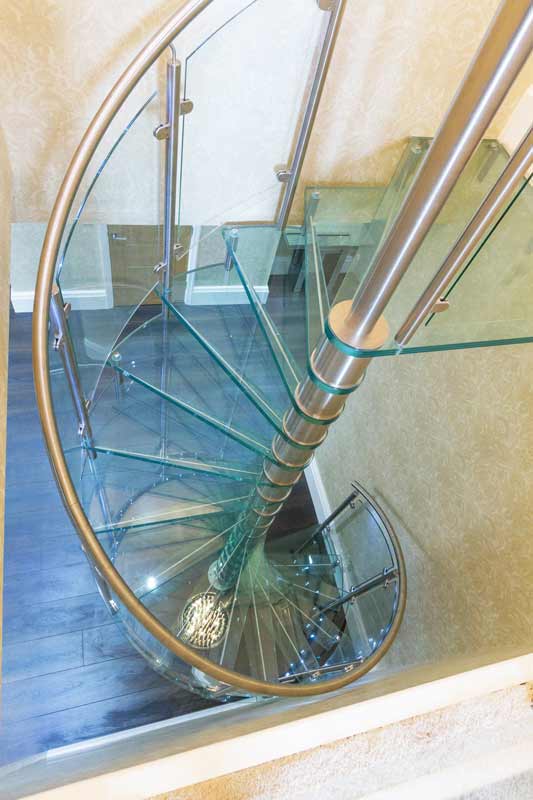

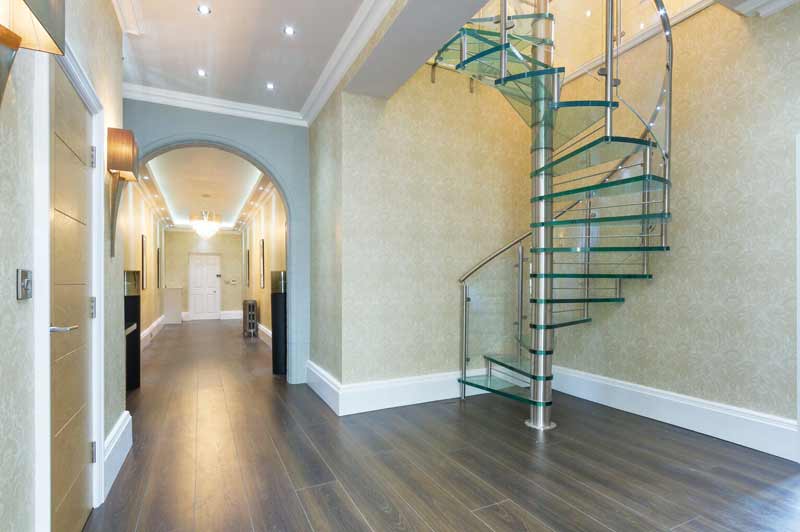

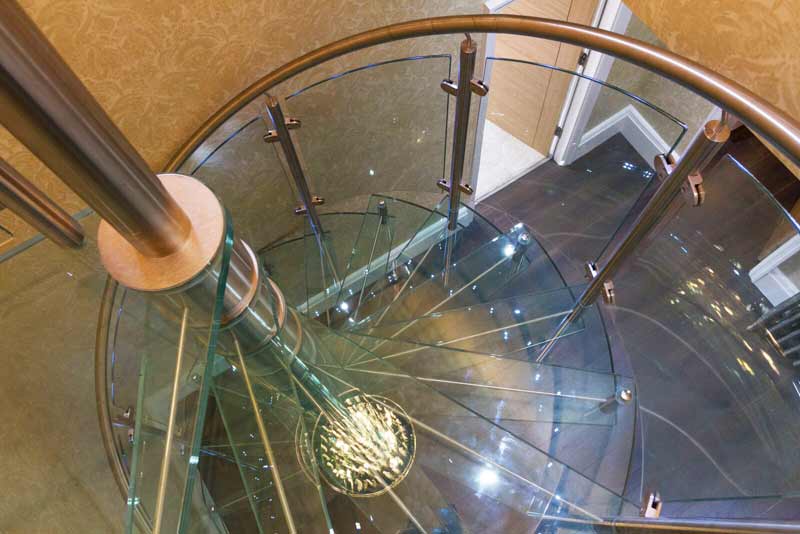

The model 76 modern spiral staircase is a custom made model. The treads cantilever directly from the centre column and are either 30mm laminated glass or 30mm Acrylic. Stainless or powder coated barrels form the centre column and there are various balustrade options. The model 76 spiral staircase is a very modern open spiral staircase which is a stunning addition to a refurb
Options for the model 76 spiral staircase are below –
30mm laminated glass
Both tread options can be frosted or etched to provide a non slip option.
The balustrade itself is in-filled by either :-
Vertical Steel Spindles
Horizontal steel rails
Curved acrylic panels
Curved Glass Panels
Curved Perforated Steel Panels
The handrail and newel posts on the Model 76 spiral staircase are generally brushed stainless steel but can also be powder coated or polished.
Each Model 76 spiral staircase supplied in unique. Each model is carefully drawn to ensure the correct entry and exit point and sufficient headroom clearance. The system can accommodate a number of differently shaped platforms and the spiral is available in diameters up to 2200mm. For a price for your own Spiral Staircase Cheshire – please fill out the form below.
|Floor to floor height||2660mm|
|Clear Tread Width||850mm|
|Tread Type||30mm laminated glass|
|Balustrade Type||8mm curved glass panels|
|Handrail||42mm Ø Stainless Steel|
|Centre Column||Brushed stainless barrels|
|Finish of Steel||Brushed Stainless Steel|
|Additional||LED Lights supplied int he handrail|
