Beech Spiral Staircase Cardiff

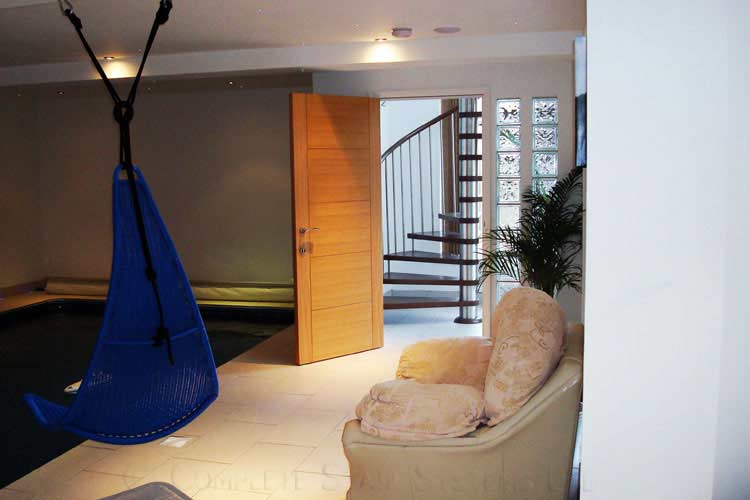

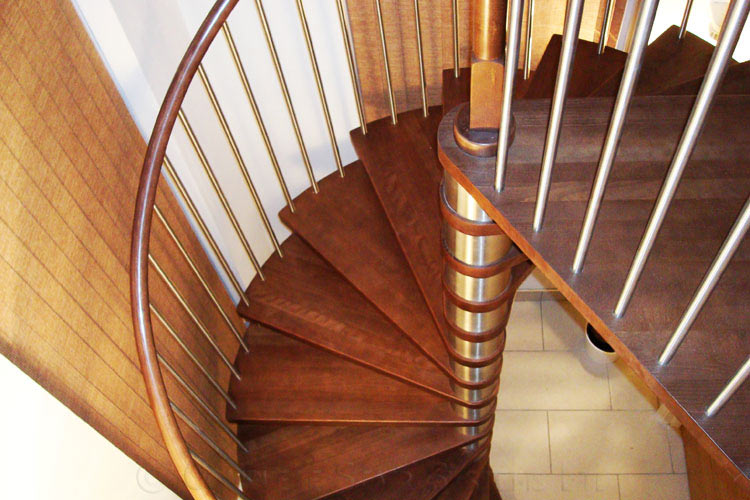

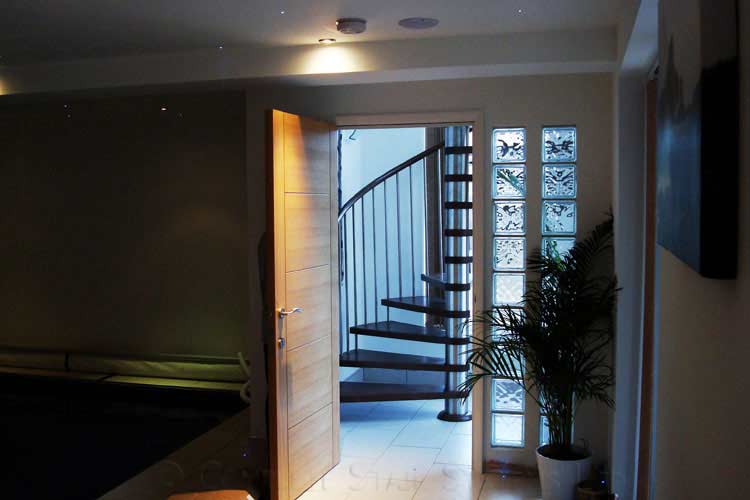

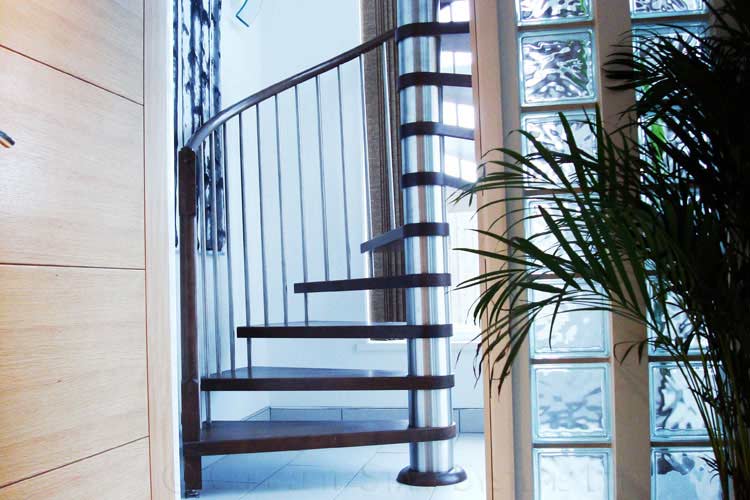

Project Spiral Staircase Cardiff.   A model 71 spiral staircase supplied to a customer in Cardiff. 1800mm diameter and beech stained walnut treads and handrail. Brushed stainless spindles and an enlarged top platform.

The model 71 spiral staircase is a bespoke spiral. It is constructed with circular barrels which slid over the centre column and separate the solid wooden treads The centre column which is hidden on completion has a steel column running up the middle giving the entire spiral staircase stability.

The wood available for this stunning spiral staircase in always hardwood for strength :- Beech, Oak, Ash, Maple, Birch & Walnut

The balustrade wrapping around the perimeter of the spiral is formed with :- Vertical Steel Spindles, Horizontal steel rails, Curved acrylic panels, Curved Glass Panels, Curved Perforated Steel Panels

The handrail and newel posts on the Model 71 spiral staircase are formed in timber or steel to match rest of the materials. The steel tends to be either brushed or polished stainless steel or powder coated. The wood is either oiled, varnished or stained in the factory and sometime left untreated to be stained on site.

Each Model 71 spiral staircase supplied is a one off. The spiral is drawn carefully to make sure the enter and exit point is correct and there are no headroom issues. As the spiral is bespoke, the platform can be made to suit the opening if needed and the overall outer diameter of the spiral can supplied upto 2200mm.

If you would like a price for this stunning spiral staircase, please fill out the form below.

Beech Spiral Staircase Cardiff

Technical Specification

Floor to floor height 2788mm
Risers 14 @ 199mm
Spiral Diameter 1800mm
Clear Tread Width 780mm
Tread Type 50mm Beech stained to walnut
Balustrade Type 16mm Ø Stainless Steel Spindles
Handrail 50mm Ø Beech stained to walnut
Centre Column Brushed Stainless
Finish of Steel Brushed Stainless
Additional Enlarged Platform

Contact us about this Spiral Staircase

01794 522444
