Steel Spiral Staircase Rickmansworth

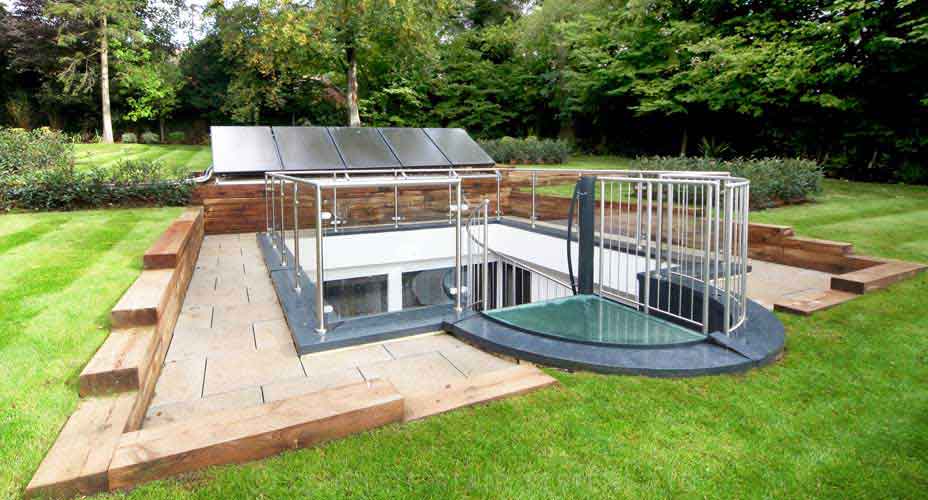

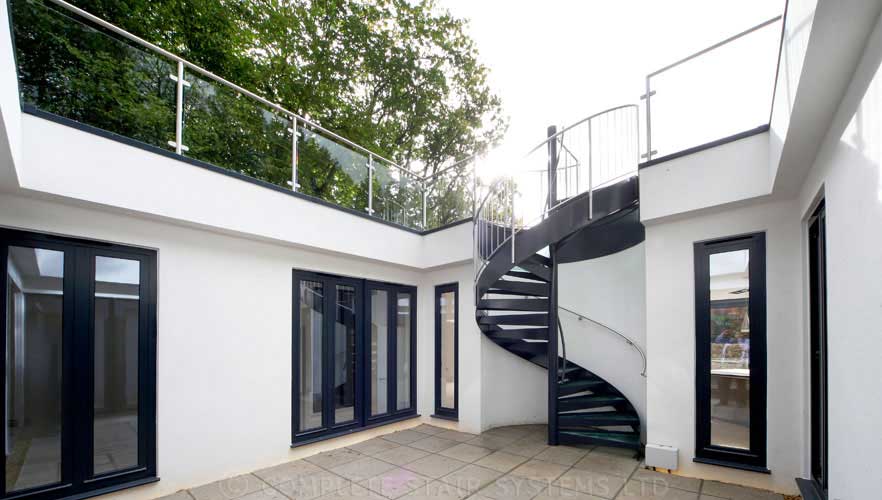

This spiral staircase was supplied to a customer building a subterranean house in Rickmansworth.  The property was build around a central square void which housed our external spiral staircase.  The roof of the property was effectively their garden with grass and vegetation.

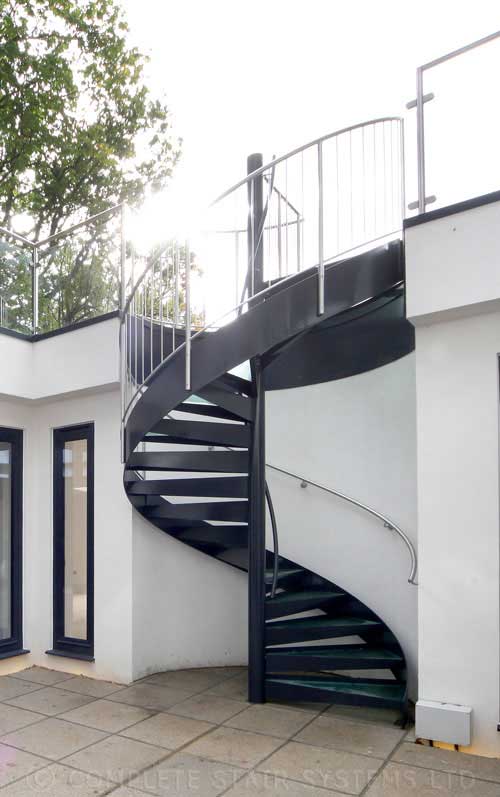

The spiral staircase was fully galvanised before going through the powder coating process to ensure no corrosion.   The treads were constructed with frosted glass and the balustrade was made up with vertical stainless steel spindles and a stainless steel handrail.  Along the platform, and running horizontally around the entire central void was glass balustrade with brushed stainless posts and handrail.

For a price for your Spiral Staircase Rickmansworth project, please fill out the form below.

Spiral Staircase Rickmansworth

Technical Specification

Floor to floor height 3400mm
Risers 17 in total
Spiral Diameter 2400mm
Clear Tread Width 950mm
Tread Type 30mm laminated glass
Balustrade Type 10mm Ø vertical stainless steel spindles
Handrail 42mm diameter stainless steel
Finish of steel
Galvanised and powder coated
Landing balustrade
matching balustrade around opening
Additional External stringer 280 x 8mm
