Oak Spiral Staircase London

Our customer for this project was refurbishing a unit for a well known Wine Bar chain in the old BBC centre, West London.

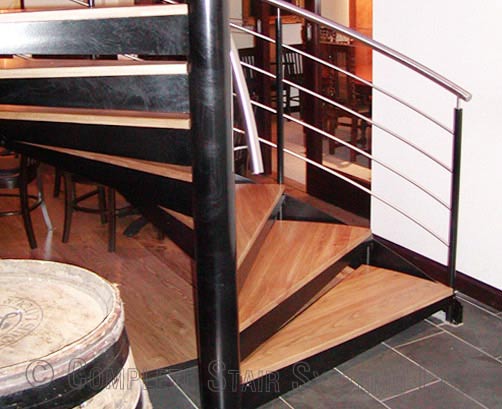

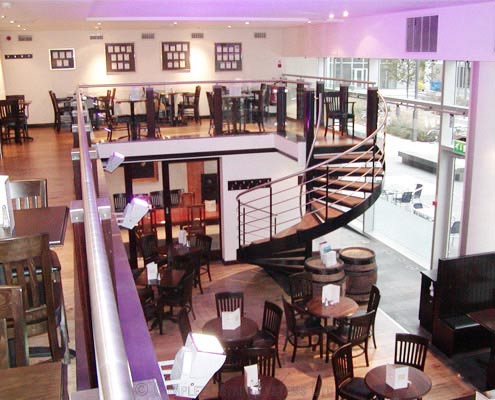

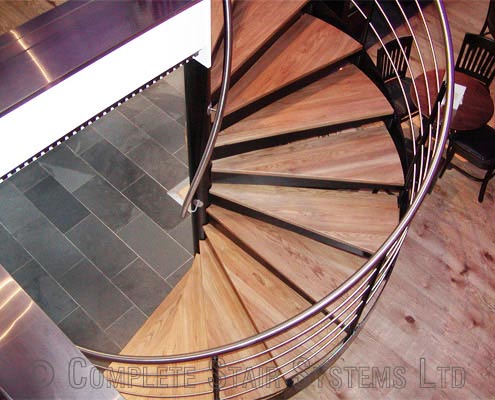

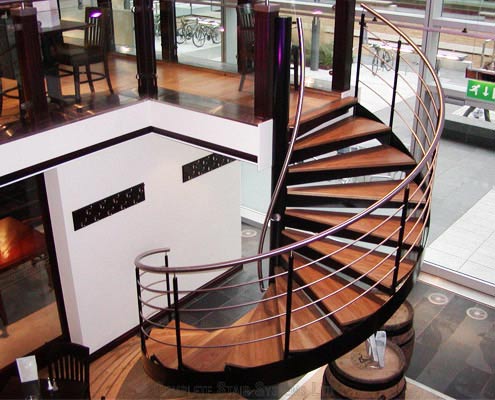

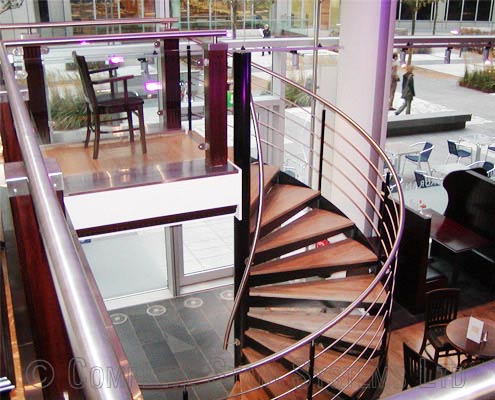

The plans showed the spiral staircase was going to be the first thing customers saw when entering the premises, so we had to create something a little special. Working with our client, we decided on a spiral with a stringer around the circumference of the spiral – thus giving the effect of a helical structure. This, along with the stainless steel horizontal bars in the balustrade created a real ‘sweep’ to the spiral.

We added at stainless steel handrail which we also attached to the centre column and matched the Oak treads to the flooring being installed throughout.

If you would like a price for this project ‘ Bespoke Spiral Staircase London’, either for a commercial or domestic project, please fill in the form below.

Oak Spiral Staircase London

Technical Specification

Floor to floor height2605mm
Risers14 @ 186.07mm
Spiral Diameter2600mm
Clear Tread Width1100mm
Tread Type30mm Oak
Balustrade Type4 x 10mm Ø Stainless Rails
Handrail42,4mm Ø Stainless Steel
Column Handrail42,4mm Ø Stainless Steel
External Stringer300 x 8mm Steel plate stringer
AdditionalNo top platform – column bolted to structure
