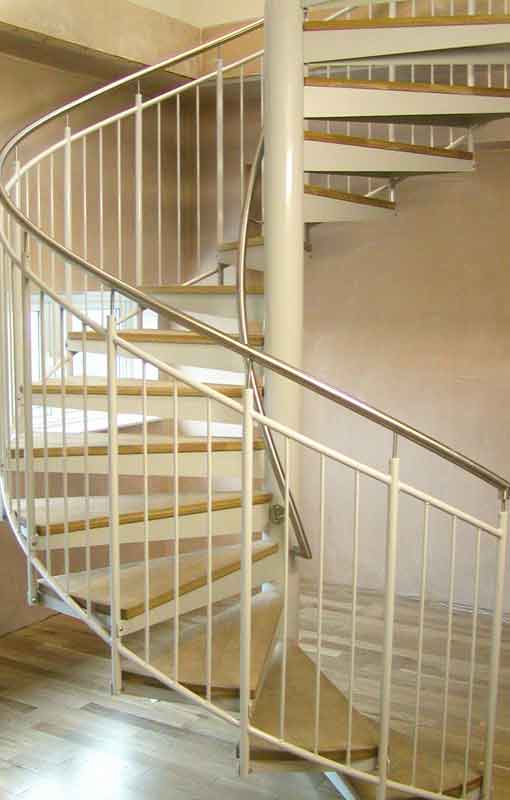

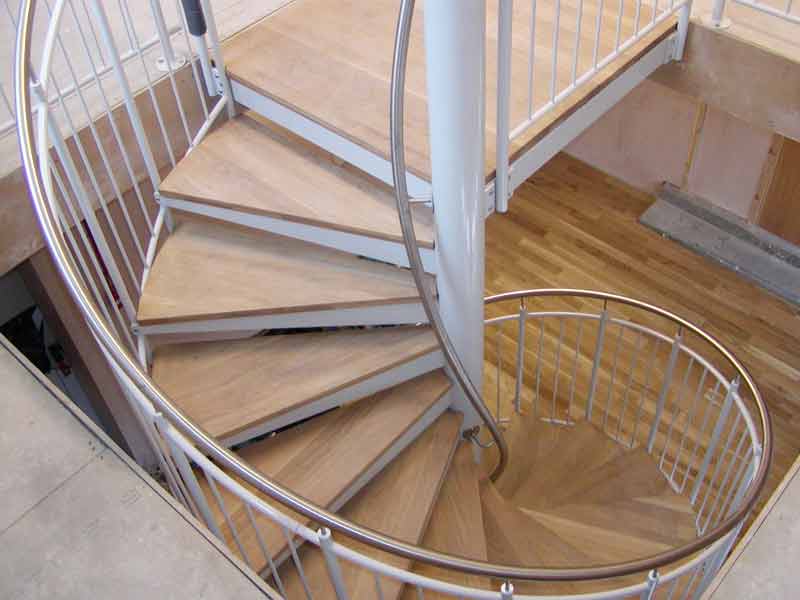

Beech Spiral Stair Clapham

This was a bespoke spiral staircase supplied to a firm in Clapham, London.  The company had just installed a new mezzanine floor in a loft space and required a spiral staircase for access.  We were working closely with the mezzanine floor company from an early stage and were able to specify the opening required.

As it was classed as a semi commercial spiral we ensured the spiral had a clear tread width of 800mm and a centre column handrail.  The treads were supplied in 30mm solid beech and the handrail 42mm diameter stainless steel.  The centre column was supplied in one continuous piece and the balustrade was formed with 10mm vertical steel spindles.  The steelwork on this ‘Spiral Stair Clapham’ project was powder coated to match the window frames in the building.

If you would like a price for this Spiral Stair Clapham project, please fill out the form below.

Spiral Stair Clapham

Technical Specification

Floor to floor height 2786mm
Risers 14 risers
Spiral Diameter 2000mm
Clear Tread Width 800mm
Tread Type 30mm Beech e
Balustrade Type 10mm Ø vertical steel spindles
Handrail 42,4mm Ø Stainless Steel
Finish of steel
Powder Coated Black
Column handrail
42.4mm Stainless Steek

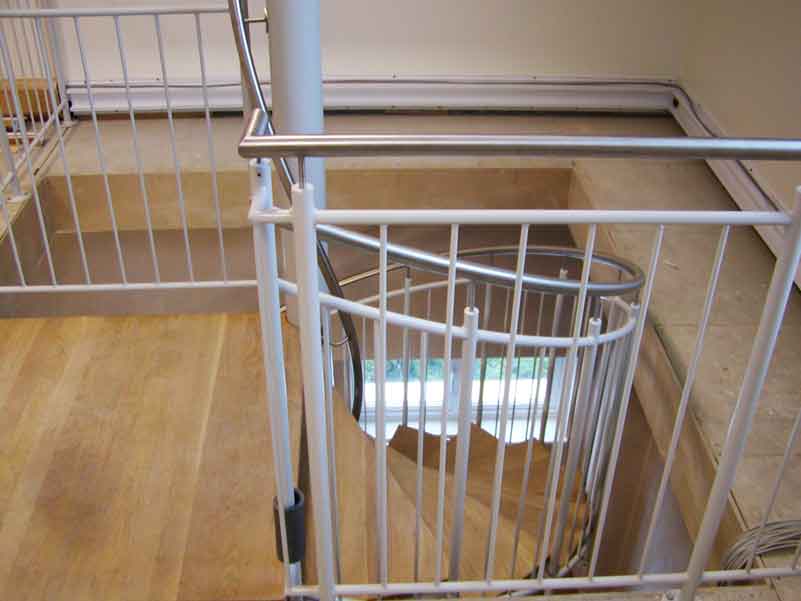

Additional matching landing balustrade at each level
