Acrylic Spiral Staircase Bromley

Spiral Staircase Bromley featured our model 76 modern spiral stair which is a custom made model. The treads cantilever directly from the centre column and are either 30mm laminated glass or 30mm Acrylic. Stainless or powder coated barrels form the centre column and there are various balustrade options. The model 76 spiral staircase is a very modern open spiral staircase which is a stunning addition to a refurb

Options for the model 76 spiral staircase are below –

Treads :-

30mm laminated glass
30mm acrylic

Both tread options can be frosted or etched to provide a non slip option.

The balustrade itself is in-filled by either :-

Vertical Steep Spindles
Horizontal Steel Rails
Curved Acrylic Panels
Curved Glass Panels
Curved Perforated Steel Panels

The handrail and newel posts on the Model 76 spiral staircase are generally brushed stainless steel but can also be powder coated or polished.

Each Model 76 spiral staircase supplied in unique. Each model is carefully drawn to ensure the correct entry and exit point and sufficient headroom clearance. The system can accommodate a number of differently shaped platforms and the spiral is available in diameters up to 2200mm. For a price for your own Spiral Staircase Bromley- please fill out the form below.

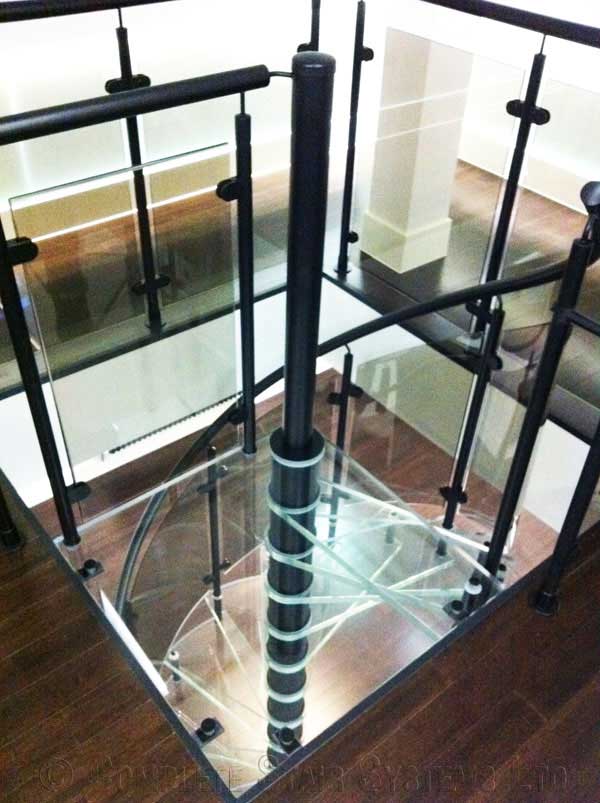

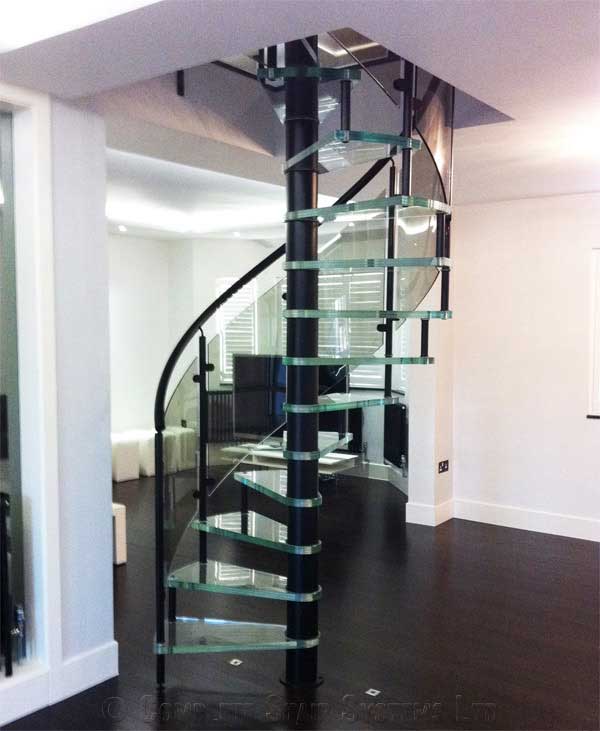

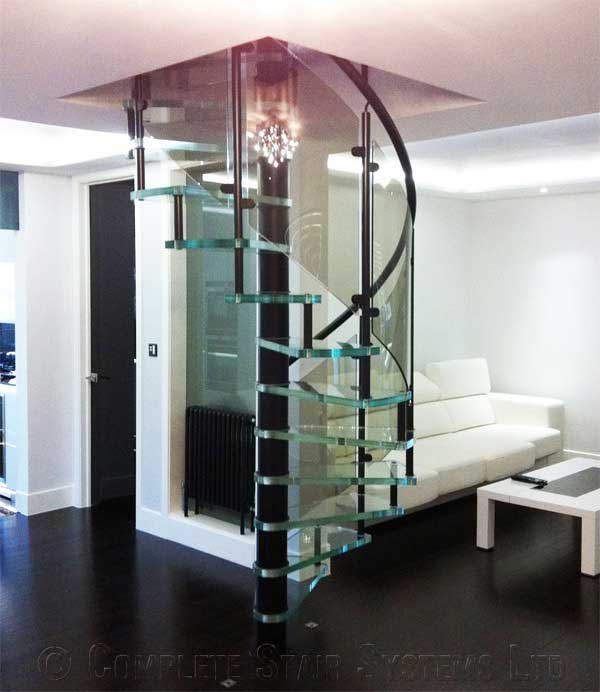

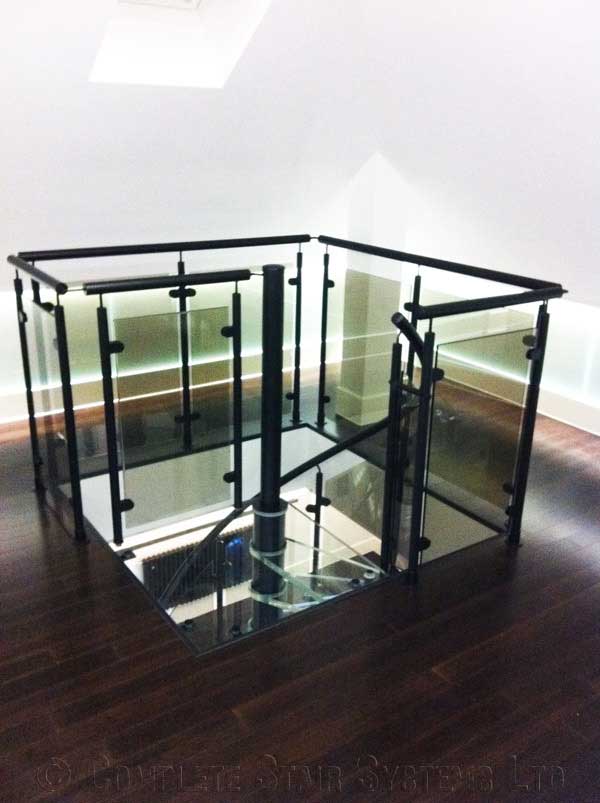

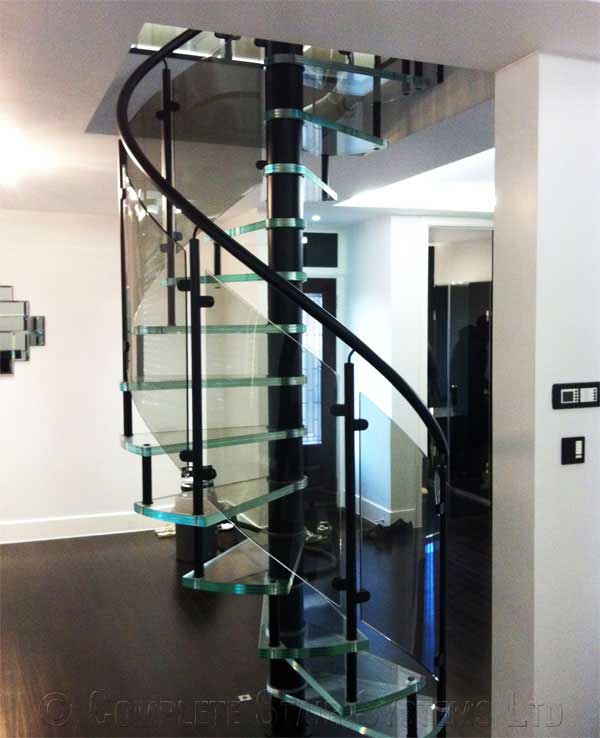

Acrylic Spiral Staircase Bromley

Technical Specification

Floor to floor height 2660mm
Risers 13
Spiral Diameter 1500mm
Clear Tread Width 610mm
Tread Type 30mm clear acrylic
Balustrade Type 8mm curved acrylic panels
Handrail 42mm Ø Stainless Steel
Centre Column Steel barrels
Finish of Steel Powder Coated Black
Additional Landing Balustrade around opening

Contact us about this Spiral Staircase
