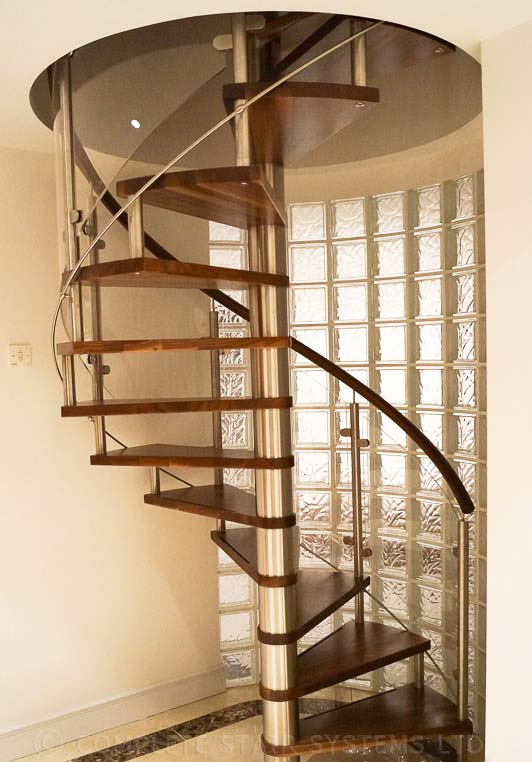

Walnut Spiral Staircase Whitechapel

This Walnut Spiral Staircase was supplied to a domestic client in Whitechapel, London.  Our customer had an upper floor flat and wanted direct access to the roof to be able to use the outdoor space more frequently.

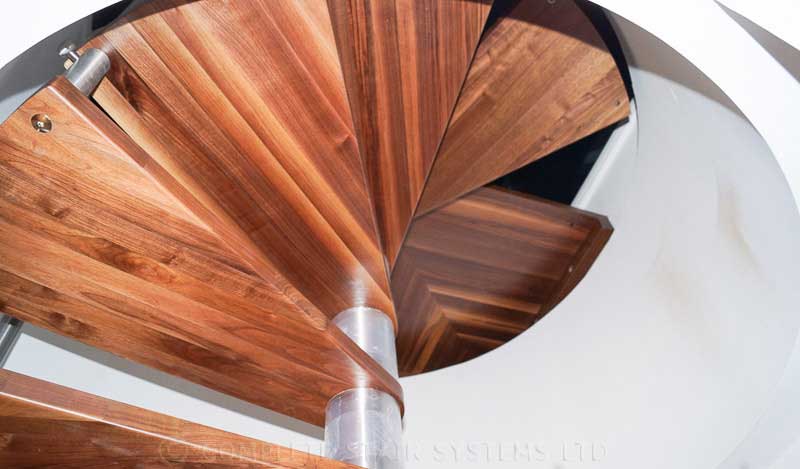

The model 71 spiral staircase is a bespoke spiral. It is constructed with circular barrels which slid over the centre column and separate the solid wooden treads The centre column which is hidden on completion has a steel column running up the middle giving the entire spiral staircase stability.

The wood available for this stunning spiral staircase in always hardwood for strength :- Beech, Oak, Ash, Maple, Birch & Walnut

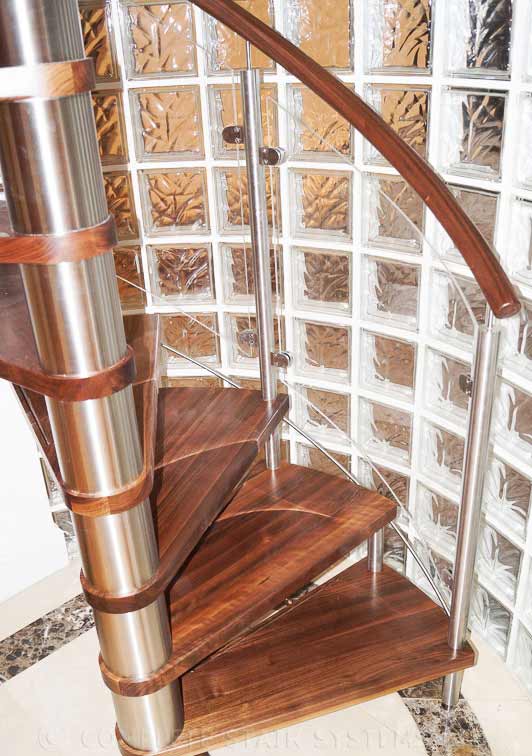

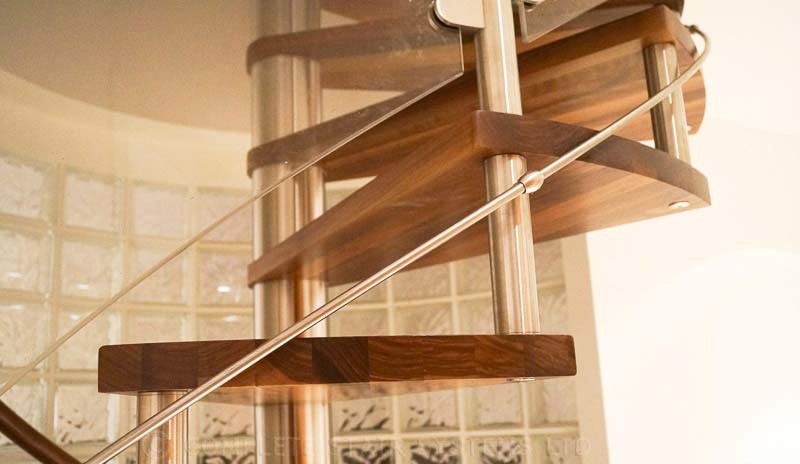

The balustrade wrapping around the perimeter of the spiral is formed with :- Vertical Steel Spindles, Horizontal steel rails, Curved acrylic panels, Curved Glass Panels, Curved Perforated Steel Panels

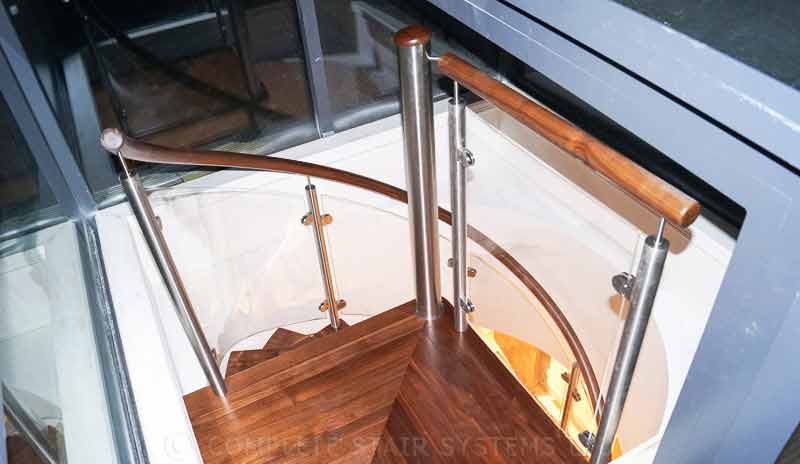

The handrail and newel posts on the Model 71 spiral staircase are formed in timber or steel to match rest of the materials. The steel tends to be either brushed or polished stainless steel or powder coated. The wood is either oiled, varnished or stained in the factory and sometime left untreated to be stained on site.

Each Model 71 spiral staircase supplied is a one off. The spiral is drawn carefully to make sure the enter and exit point is correct and there are no headroom issues. As the spiral is bespoke, the platform can be made to suit the opening if needed and the overall outer diameter of the spiral can supplied upto 2200mm.

If you would like a price for this stunning spiral staircase, please fill out the form below.

Walnut Spiral Staircase Whitechapel

Technical Specification

Floor to floor height 3765mm
Risers 16 @ 218.5mm
Spiral Diameter 1500mm
Clear Tread Width 620mm

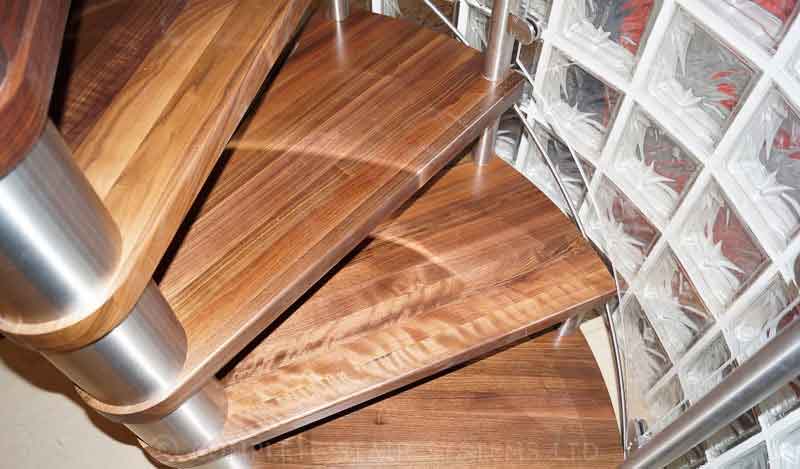

Tread Type 40mm Walnut
Balustrade Type 8mm curved acrylic panels
Handrail 37,7mm Ø Stainless Steel
Centre Column 139mm Ø – stainless steel
Finish of Steel Stainless Steel
Additional horizontal bar wrapping the spiral to reduce gap
